3GHz Freeview RG6 Terrestrial Cable
Description
Details

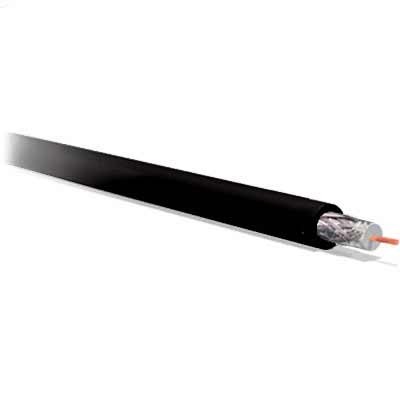

High quality RG6 Coaxial cable for use with Freeview HD Set Top Boxes or IDTVs. You can select the type of connectors you would like installed onto the cable below. Note: If you wish to to connect a Freeview HD Set Top Box or IDTV to one of our Terrestrial Aerials you should choose the 1x Male Belling Lee 1x PPC F-Type Connector option.
Standard construction:
• 1.02 mm inner conductor• Gas injected foam PE dielectric
• Outer shield: Duobond II + aluminum braid shield
• Nominal O.D 6.91mm
• Jacket PVC black
• sweep tested up to 3GHz
Electrical Characteristics:
• Impedance 75 ohmAttenuation:
• 5MHz - 1.64 dB/100m• 55MHz - 4.59 dB/100m
• 211MHz - 8.53 dB/100m
• 500MHz -13.45 dB/100m
• 750MHz - 16.73 dB/100m
• 862MHz - 18.04 dB/100m
• 1000MHz - 19.68 dB/100m
• 1450MHz - 25.59 dB/100m
• 1800MHz - 28.21 dB/100m
• 2250MHz - 32.15 dB/100m
• 3000MHz - 37.07dB/100m
