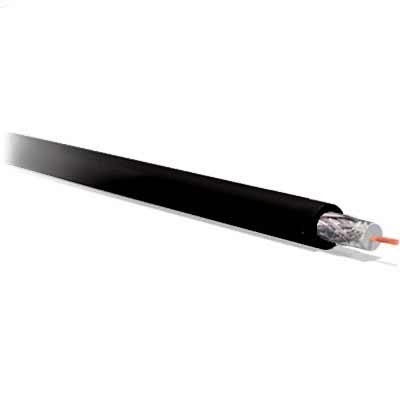

3GHz Freeview RG6 Satellite Cable

High quality RG6 Coaxial cable for use with Satellite Receivers/Dishes. You can select the F-Type connectors you would like installed onto the cable below, screw on type connectors can be removed for installation. Screw on connectors are for inside use only. For outside use select PPC connectors.

Standard construction:

• 1.02 mm inner conductor
• Gas injected foam PE dielectric
• Outer shield: Duobond II + aluminum braid shield
• Nominal O.D 6.91mm
• Jacket PVC black
• sweep tested up to 3GHz

Electrical Characteristics:

• Impedance 75 ohm

Attenuation:

• 5MHz - 1.64 dB/100m
• 55MHz - 4.59 dB/100m
• 211MHz - 8.53 dB/100m
• 500MHz -13.45 dB/100m
• 750MHz - 16.73 dB/100m
• 862MHz - 18.04 dB/100m
• 1000MHz - 19.68 dB/100m
• 1450MHz - 25.59 dB/100m
• 1800MHz - 28.21 dB/100m
• 2250MHz - 32.15 dB/100m
• 3000MHz - 37.07dB/100m
