10dB Inline satellite amplifier
Description
Details

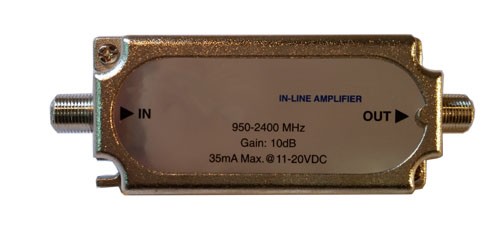

Designed to amplify the Satellite signals, the unit is fitted along the cable run between the satellite dish and the receiver. It is for internal use and powered by the voltage from the receiver, intended to replace the loss of signal where very long cable runs or splitters are being used. The amplifier may differ from the picture.
Features:
• Frequency Range: 950-2300 Mhz• Insertion Gain:
• 10.0 dB min. at 950 Mhz
• Insertion Gain: 13.0 dB min. at 2150 Mhz
• Maximum Output Level: 90 dBµV
• Current Drawn: 35 mA max
• Temperature range: -25 °C - +60 °C
Warranty: 1 year warranty against manufacturing defects.
