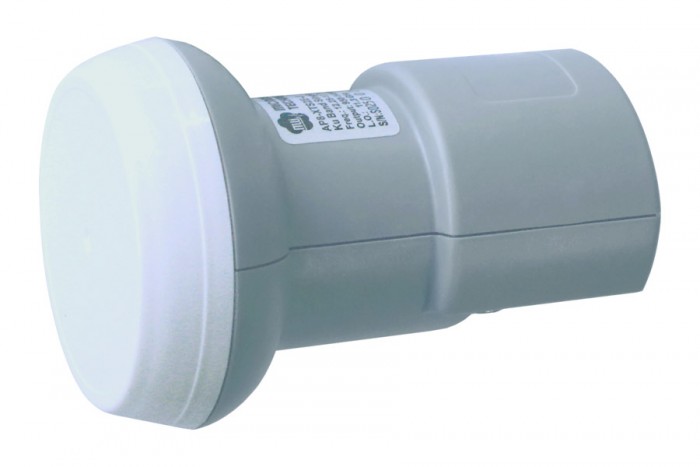

MTI 11300MHz L.O. KU Band LNB
Description
Details
The MTI AP8-XTS2E-J KU Band LNB has the best performance of the 11300MHz L.O. LNBs for the weaker signals.
It allows 12.25-12.75GHz Input Freq Signal to be received. Sky, Freeview and most other content available on KU band in NZ is broadcast in this range.
This LNB will work with Freeview.
Documentation:
Instructions for setting the skew
Warranty: 1 year warranty against manufacturing defects.
Additional Info
Additional Info
| Enclosure Type | High quality UV tolerant plastic enclosure |
|---|---|
| L.O. Frequency | 11.3GHz (11300MHz) |
| Input Frequency Range | 12.25-12.75GHz |
| Noise Figure | 0.2dB (Typ.) |
| Gain Flatness | ±0.5dB/26MHz |
| Conversion Gain | 60dB (Typ.) |
| Cross Pol. Isolation | 25dB (Typ.) |
| Image Rejection | 45dB (Typ.) |
| Input Interface | Waveguide WR-75 |
| F/D Ratio | 0.6 |
| Throat Diameter | 40mm |
| Output Connector | 75 Ohm F Type Female |
